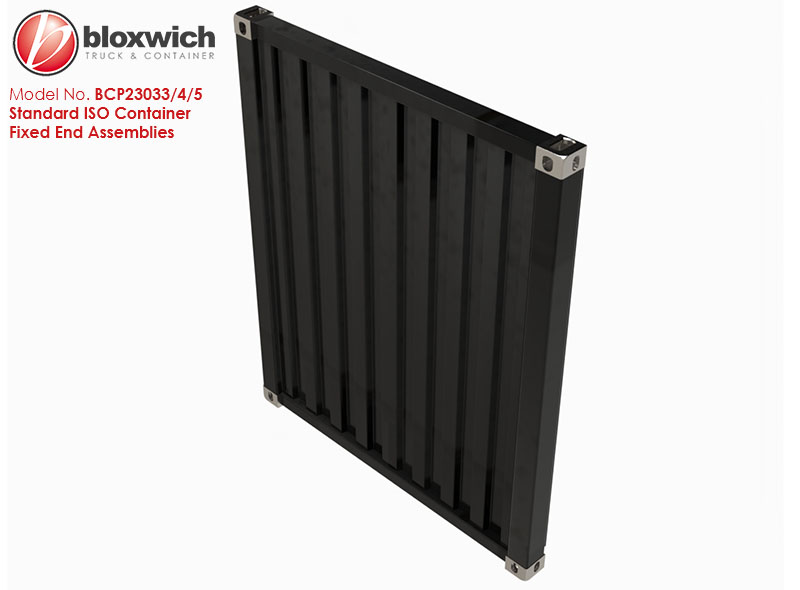

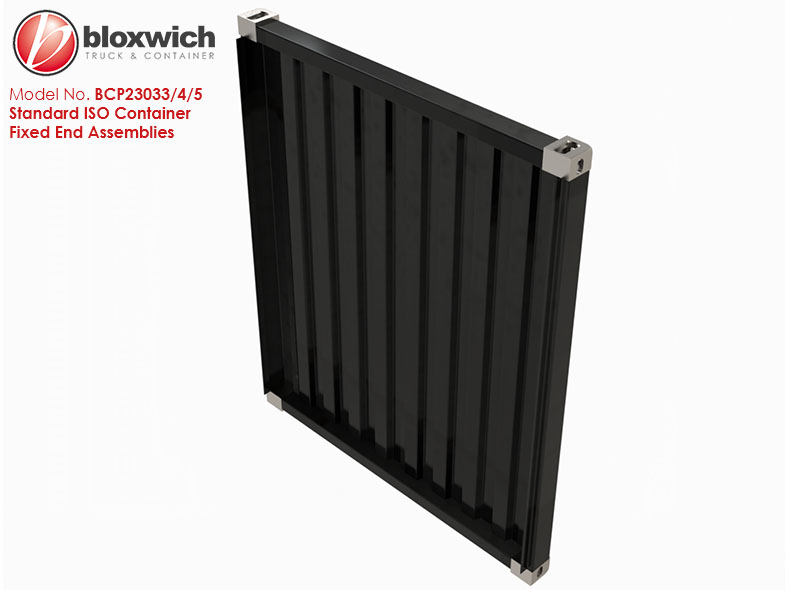

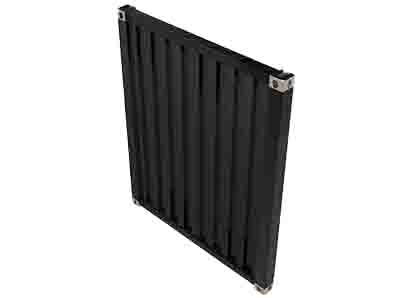

Bloxwich Standard Product: Standard ISO Container Fixed End Assembly
Supplied in: Mild steel self-colour frame and Corten panels, fully welded O/S and at the corners (fully assembled state). Partially assembled state (PA) is corner post assemblies and all the other parts supplied loose. Loose parts (LP) means all the parts supplied loose.
BCP23033 is for 8' (2438mm) tall containers, BCP23034 is for 8' 6" (2591mm) tall containers & BCP23035 is for 9' 6" (2896mm) tall containers also known as "high cube" containers. The default floor height is 118mm, need a different floor height? Please contact as we can fit a different bottom end rail if required to alter the floor height.
Use: For use in converting long shipping containers into shorter storage containers etc e.g. a 40' container into 2 x 20' or 4 x 10' containers. For any sort of structural use, the load bearing capabilities of this assembly when fitted must be established by the manufacturer in accordance with the relevant standards and any required approvals.
Parts are in stock, but these are assembled to order, please contact us for more details, and the lead time.
Weight: 290/310/345 kg Commodity No 830249 GTIN 5060345317664
Due to the size of this product, at the checkout "Shipping And Handling/Class of Service" page our website defaults to "Delivery Quote Required" or "Collection/Own Courier". See
HERE for more details.
Q) Why does Bloxwich offer different assembly states? A) Fully assembled is the most expensive option to deliver due to its overall size and weight. Partially assembled (PA) means Bloxwich weld the sub-assemblies and pack them onto pallets with the remaining loose parts to reduce delivery costs. Loose parts means that customers have to do all the welding as Bloxwich simply pack all the parts onto pallets. This is the lowest cost delivery option, and it also gives customers the opportunity to customize the assembly. For PA & LP options Bloxwich provide an assembly drawing.

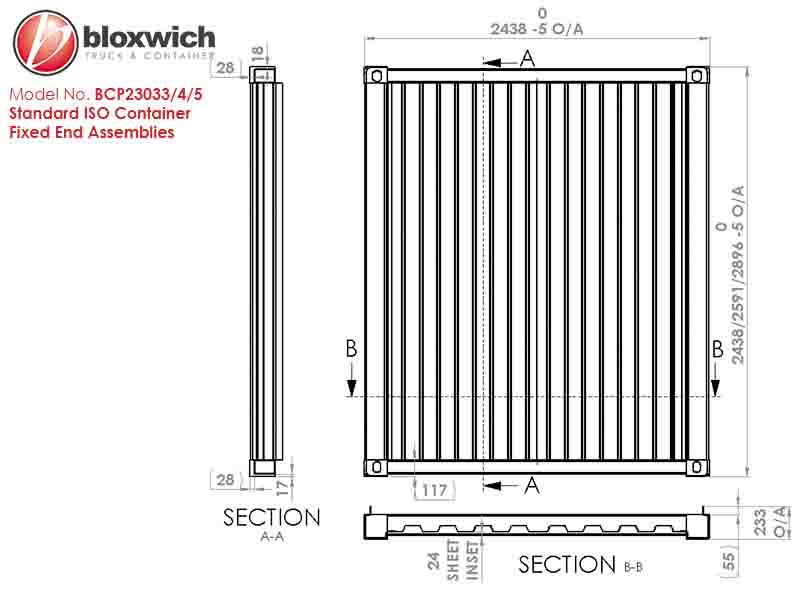

Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
