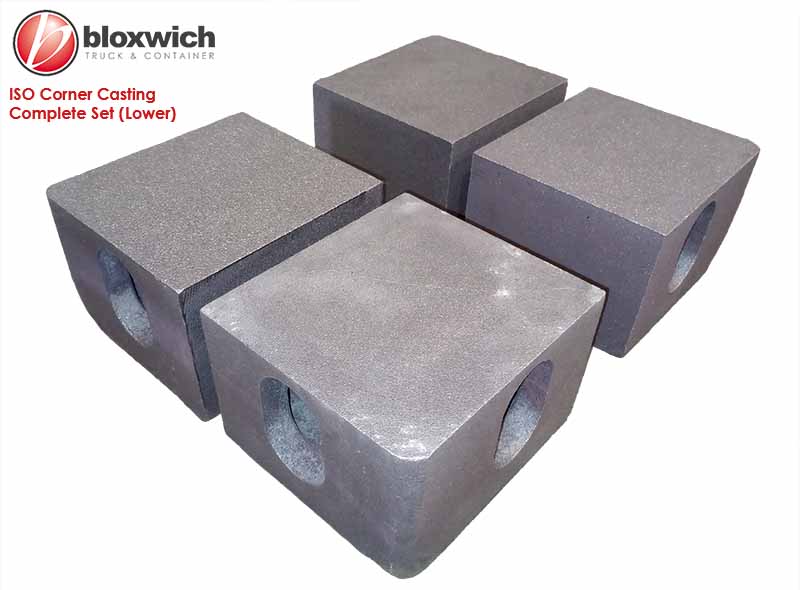

Bloxwich Standard Product: ISO Corner Casting Complete Set (Lower)
Supplied in: Cast steel, self colour

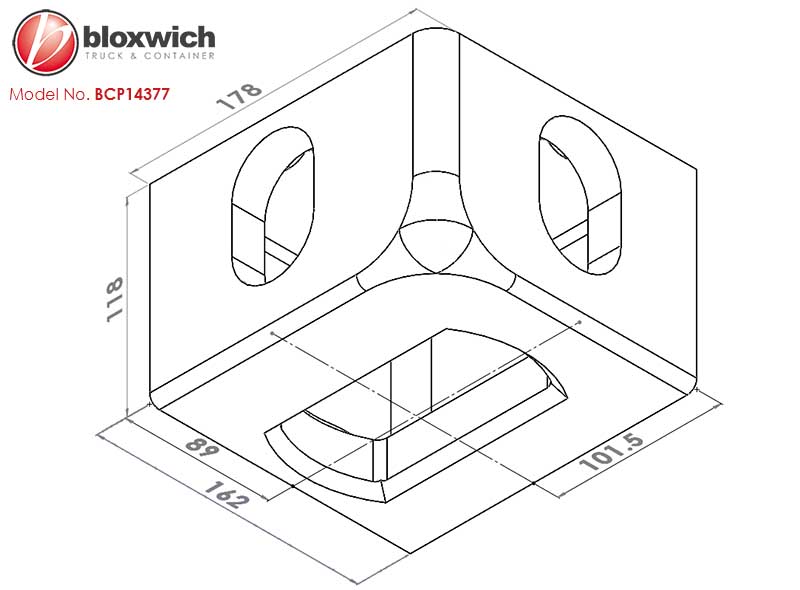

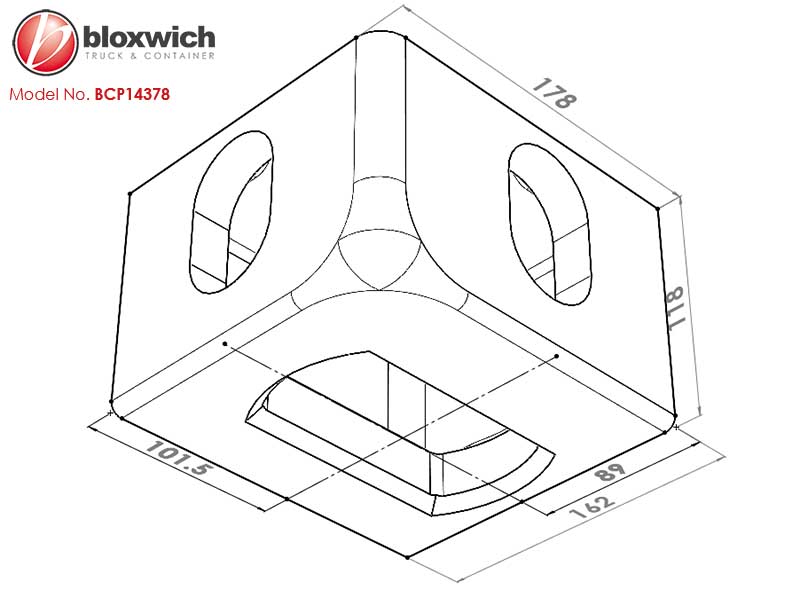

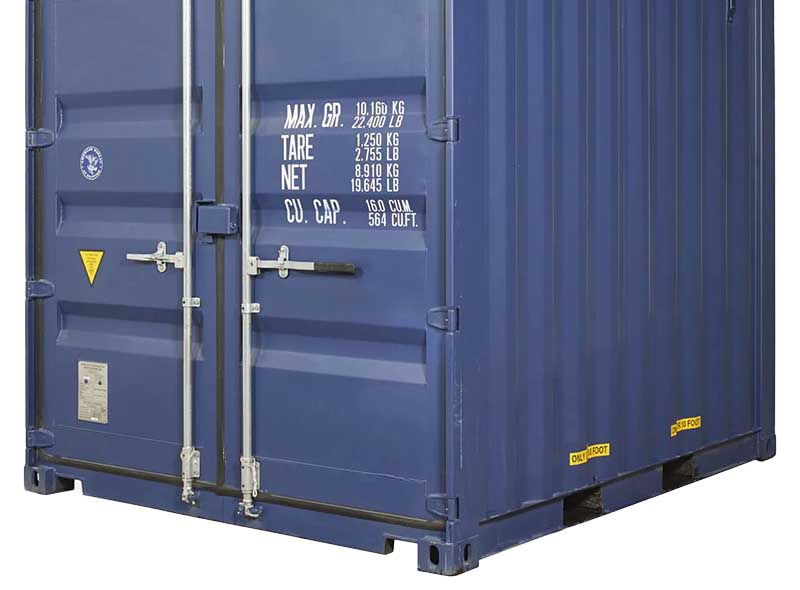

Use: Set for bottom of a container and comprises of all 4 bottoms i.e 2 X LH BCP14377 and 2 X RH BCP14378. Conforms to ISO 1161 and also provided with EN10204:2004 3.2 certificate (equivalent to 3.1C in ISO 10474)
Weight: 10.8 kg (each single casting) Commodity Code 830249 GTIN 5060345317985
Bloxwich can send a copy of the certificates, for the batch in question, to the buyer / builder before shipping.
It is important that the buyer / builder gets the certificates pre-approved by their end certifier, before welding to any structures, as it is the users responsibility to demonstrate to DNV-GL, Lloyds Register, ABS or Bureau Veritas etc. (the certifier) that the ISO corner castings comply with the customer's order.
Note some certifiers are fixed on a certain type of certificate. The user should check the ISO standards to ensure a full understanding.
Click
HERE to contact us and we will email the required customer drawings.
