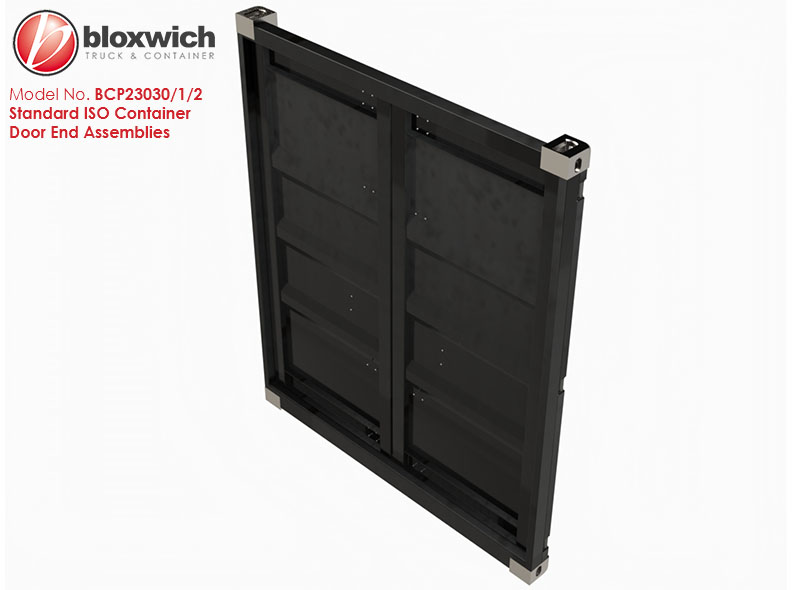

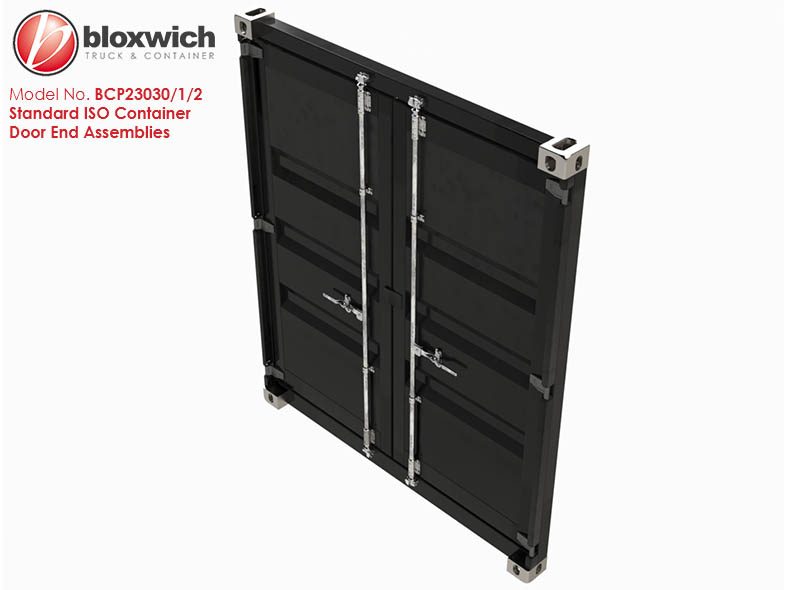

Bloxwich Standard Product: Standard ISO Container Door End Assembly
Supplied in: Mild steel self-colour frame and Corten panels. Door gear and fasteners are galvanised. Fully welded O/S and at the corners (fully assembled state). Partially assembled state (PA) is corner post, door gear and door assemblies, and all the other parts supplied loose. Loose parts (LP) means all the parts supplied loose. 3 corry door panels are shown but 5 corry are also available.
BCP23030 is for 8' (2438mm) tall containers, BCP23031 is for 8' 6" (2591mm) tall containers & BCP23032 is for 9' 6" (2896mm) tall containers also known as "high cube" containers.
Use: For use in converting long shipping containers into shorter storage containers etc e.g. a 40' container into 2 x 20' or 4 x 10' containers. For any sort of structural use, the load bearing capabilities of this assembly when fitted must be established by the manufacturer in accordance with the relevant standards and any required approvals.
Parts are in stock, but these are assembled to order, please contact us for more details, and the lead time. Door seal sets, seal retaining strip kits and rivets available separately.
Weight: 331/350/385 kg Commodity No 830249 GTIN 5060345317633
Due to the size of this product, at the checkout "Shipping And Handling/Class of Service" page our website defaults to "Delivery Quote Required" or "Collection/Own Courier". See
HERE for more details.

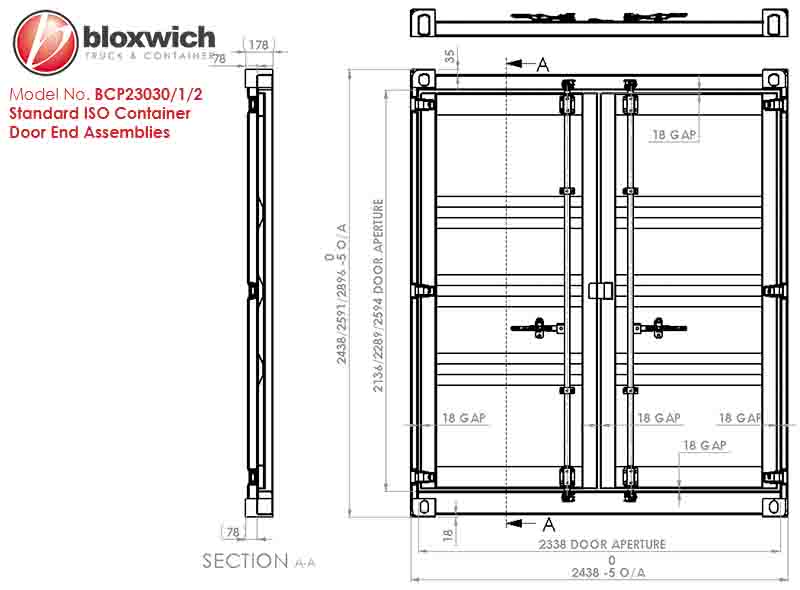

Q) Why does Bloxwich offer different assembly states? A) Fully assembled is the most expensive option to deliver due to its overall size and weight. Partially assembled (PA) means Bloxwich weld the sub-assemblies and pack them onto pallets with the remaining loose parts to reduce delivery costs. Loose parts means that customers have to do all the welding and galvanizing of the lock rods (if required, recommended) as Bloxwich simply pack all the parts onto pallets. This is the lowest cost delivery option, and it also gives customers the opportunity to customize the assembly. For PA & LP options Bloxwich provide an assembly drawing.
Click
HERE to view the drawing then right click and select "Save image as" or on a touch screen device press and hold the image and select "download" or "share" to save a copy for offline viewing or printing etc. Press/swipe back to continue shopping.
